KsVA Vertically Suspended Multistage Diffuser Can
Condensate Pumps: vertically suspended multistage diffuser can, with an inner casing of ring section type, shaft sealing by means of a mechanical seal. The pump rotor is carried by the bottom medium lubricated plain bearing and the top thrust and radial antifriction bearing.

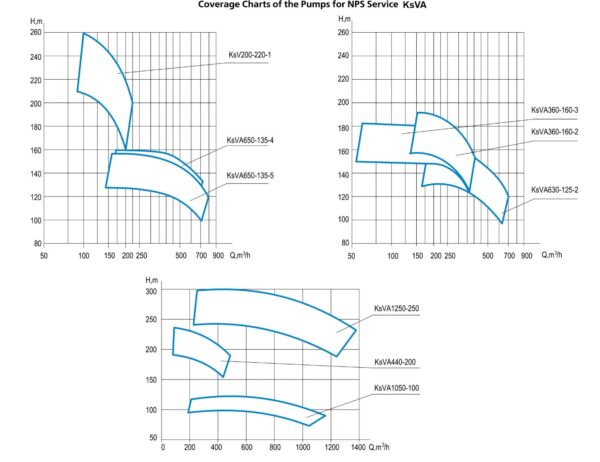

| Pump make | Equipment applications | Technical data | Safety class / Seismic stability category / Climatic version | ||||
|---|---|---|---|---|---|---|---|
| Capacity, m3/h | Head, m | Type of drive & its parameters | |||||
| KsVA 125-55-1 | Designed for condensate extraction from the condenser of TPN drive turbine to delivery either to the main turbine condenser or to the drainage tank. | 125 | 55 | Electric motor n = 3000 rpm P nom. = 37 kW U = 220/380 V | 3/II/УХЛ4 | ||
| KsVA 200-220 | Used for handling waste steam condensate of the stationary steam turbines of the secondary circuit at the NPP units. | 200 | 220 | Electric motor n = 1480 rpm P nom. = 200 kW U = 6000 V | 3Н/-/УХЛ4 | ||
| KsVA 650-135-8 | Used for pumping moisture separator drains and heating steam condensate from the moisture separator trap into the turbine condensate line downstream of the LP heater No.4 to deliver the mixture into the deaerator for the turbo-installations К-1200-6,8/50 forming part of 1200 MW PWR power unit at the Belarusian NPP-2006 project. | 663 | 141 | Electric motor n = 1500 rpm P nom. = 400 kW U = 10000 V | 4/II/УХЛ4 | ||
| KsVA 360-160-1 | Designed as a heater drain pump for pumping heating steam condensate from the heat exchangers of the secondary circuit at the power units of nuclear power stations (NPS) and nuclear heat electropower stations. | 360 | 160 | Electric motor n = 1480 rpm P nom. = 250 kW U = 6000 V | 3Н/-/УХЛ4 | ||
| KsVA 360-160-2 | Used for drawing water from ECCS (emergency core cooling system) container to boost the inlet pressure of the auxiliary BFPs in case of loss-of-coolant accident at the NPS power units. | 360 | 160 | Electric motor n = 1485 rpm P nom. = 250 kW U = 6000 V | 3О/I/УХЛ3 | ||
| KsVA 360-160-3 | Designed as a heater drain pump for pumping heating steam condensate from the LP heater No. 1 back into the main condensate line downstream of the LP heater No. 1 in the turbo-installations К-1000-60/1500-2 at the NPS power units equipped with VVER-1000 PWR. | 360 | 160 | Electric motor n = 1480 rpm P nom. = 250 kW U = 6000 V | 3/II/УХЛ4 | ||
Condensate Pumps:
vertically suspended multistage diffuser can, with an inner casing of ring section type, shaft sealing by means of a mechanical seal. The pump rotor is carried by the bottom medium lubricated plain bearing and the top thrust and radial antifriction bearing.
| Pump make | Equipment applications | Technical data | Safety class / Seismic stability category / Climatic version | ||
|---|---|---|---|---|---|
| Capacity, m3/h | Head, m | Type of drive & its parameters | |||
| KsVA 500-220 | Used for handling waste steam condensate of the stationary steam turbines of the secondary circuit at the NPP units. | 500 | 220 | Electric motor n = 1480 rpm P nom. = 500 kW U = 6000 V |
3Н/-/УХЛ4 |
| KsVA 630-125-1 | Designed as a heater drain pump for pumping heating steam condensate from the heat exchangers of the secondary circuit at the NPP units. | 630 | 125 | Electric motor n = 1480 rpm P nom. = 315 kW U = 6000 V |
3Н/-/УХЛ4 |
| KsVA 630-125-2 | Designed as a heater drain pump for pumping heating steam condensate from the LP heater No. 3 back into the main condensate line downstream of the LP heater No. 3 in the turbo-installations К-1000-60/1500-2 at the NPS power units equipped with VVER-1000 PWR. | 630 | 125 | Electric motor n = 1480 rpm P nom. = 315 kW U = 6000 V |
3/II/УХЛ4 |
Condensate Pumps:
vertically suspended multistage diffuser can, with an inner casing of ring section type, shaft sealing by means of a mechanical seal. The pump rotor is carried by the bottom medium lubricated plain bearing and the top oil-bath lubricated thrust and radial plain bearing.
| Pump make | Equipment applications | Technical data | Safety class / Seismic stability category / Climatic version | ||
|---|---|---|---|---|---|
| Capacity, m3/h | Head, m | Type of drive & its parameters | |||
| KsVA 650-135-1 | Used for pumping waste steam condensate of the stationary steam turbines and heating steam condensate from the heat exchangers at the power units of nuclear power stations (NPS) and nuclear heat electropower stations. | 650 | 135 | Electric motor n = 1480 rpm P nom. = 500 kW U = 6000 V |
-/-/УХЛ4 |
| KsVA 650-135-2 | Used for pumping heating steam condensate from the LP heater No. 4 and superheater-separator trap in the turbo-installations at the NPS power units equipped with VVER-91 pressurized water reactors. | 650 | 135 | Electric motor n = 1485 rpm P nom. = 500 kW U = 6000 V |
4Н/II/М3 |
| KsVA 650-135-3 | Designed as a heater drain pump for removal of heating steam condensate from the LP heater No. 4 and superheater-separator trap in the turbo-installations К-1000-60/3000-2 at the VVER-1000 PWR power units. | 663 | 141 | Electric motor n = 1489 rpm P nom. = 400 kW U = 6000 V |
3/IIб/Тв3 |
| KsVA 650-135-4 | Used for evacuation of a mixture of superheated steam moisture separator drains and heating steam condensate from the LP heater No.4 hotwell to transfer it to the feedwater deaerator in the turbo-installations К-1000-60/3000-3 at the NPPs. | 582 | 146 | Electric motor n = 1485 rpm P nom. = 400 kW U = 10000 V |
3Н/IIб/ТВ4 |
| KsVA 650-135-5 | Designed as a heater drain pump for recycling waste steam moisture separator drains from the HP cylinder trap into the turbine condensate line downstream of the LPH’s in the turbo-installations К-1000-60/1500-2M and К-1100-60/1500-2M at the NPS power units equipped with VVER-1000 PWR. | 650 | 135 | Electric motor n = 1485 rpm P nom. = 400 kW U = 6000 V |
3/II/УХЛ4 |
| KsVA 650-135-6 | Used for drawing moisture separator drains and condensate, piped to the moisture separator trap, and for transferring water to the deaerator through the main condensate line downstream of the LP heater No.4 in case of the turbo-installations К-1200-6,8/50 at the NPS-2006 project equipped with the VVER-1200 pressurized water reactor. | 663 | 141 | Electric motor n = 1500 rpm P nom. = 400 kW U = 10000 V |
3/II/УХЛ3.1 |
| KsVA 650-135-7 | Used for pumping moisture separator drains and condensate from the moisture separator trap into the turbine condensate line downstream of the LP heater No.4 to deliver further to the deaerator for the turbo-installations К-1200-6,8/50 at the AES-2006 project Leningrad NPP-2 units. | 663 | 141 | Electric motor n = 1500 rpm P nom. = 400 kW U = 10000 V |
4/II/УХЛ4 |
| KsVA 650-135-8 | Used for pumping moisture separator drains and condensate from the moisture separator trap into the turbine condensate line downstream of the LP heater No.4 to deliver further to the deaerator for the turbo-installations К-1200-6,8/50 forming part of 1200 MW PWR power unit at the Belarusian NPP-2006 project. | 663 | 141 | Electric motor n = 1500 rpm P nom. = 400 kW U = 10000 V |
4/II/УХЛ4 |
